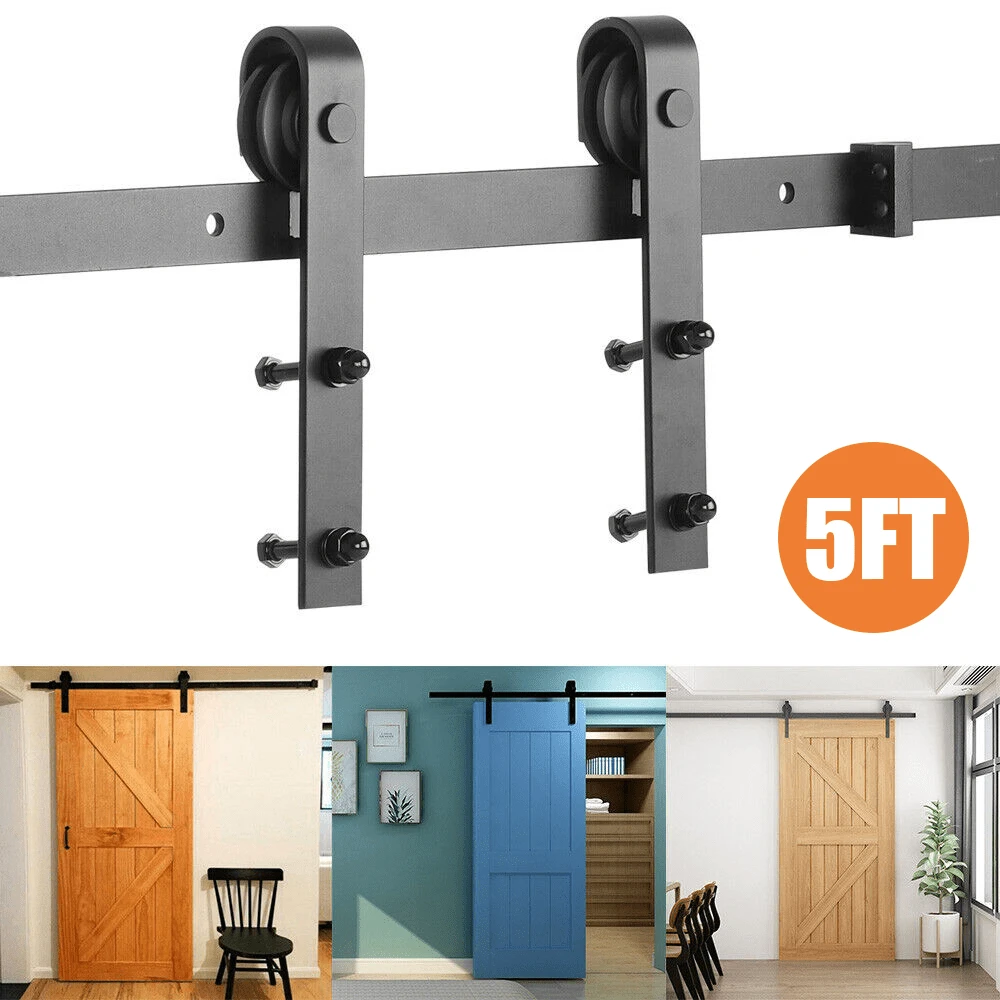

5ft Wooden Door Sliding Door Track System Modern Internal Barn Door Hardware Set Kit

SKU: sr251217112376267234722

£20.08

Shopping Security

Description: Quiet and smooth, durable rust proof, removable, bearing great; Instructions for use: 1. Locate the center point of the guide rail mounting hole based on the width of the door +120mm and the height of the door +43mm, and drill the hole according to the corresponding hole position of the guide rail (ensure that the rail installation is horizontal). 2. Install the 3*M8 mounting bolts on the wall in turn; 3. Install the hook of the door. The first mounting hole is 4cm down the top edge of the door, and the second mounting hole is drilled on the door according to the hole moment on the wheel, and runs through the door panel; 4. Install the anti-trip block on the top of the door, and rotate the anti-trip block to the outside of the top edge of the door; 5. Hang the door with the hanging structure and anti-tripping block installed on the track, and adjust the anti-tripping block under the track to prevent the hook from jumping out of the track; 6. Install an anti-jump plate under the door (the standard anti-jump plate requires a slot at the bottom of the door to be used); 7. Finally, by adjusting the stroke of the door, install the limiter, the role of the limiter is to limit the distance of the door, so please set the limiter at the anchor point according to the sixth step of the release plate to the door, after the adjustment is completed, use the hex wrench to tighten the screw of the limiter, that is, the installation is complete; Specifications; Color: Black; Quantity: 1 set; 2* track, a single length of about 77*4cm, wall thickness of 6mm; 2* pulley, a single length of about 38*4cm, wall thickness of 6mm; Suitable for door thickness 35-40mm; Load-bearing capacity of about 100KG (load-bearing capacity installed on a solid load-bearing wall); The distance from the top of the door to the ceiling should be greater than 18cm; Material: carbon steel; Accessories: 4* bolts, 3* pipe clamp, 2* stopper, 2* anti-trip block, 2* white plastic expansion, 1* anti-trip piece, 4* black screws, 3*M8 mounting bolt, 3*M8 plastic expansion, 3* cutting piece, 1* hexagonal wrench; Package included: 1x Door Track System Kit Note for use: 1, the wall above the door must be able to bear weight, with red brick or concrete cast-in-place wall can be directly installed, if foam or hollow brick and other non-load-bearing walls, need to install wood blocks (non-load-bearing wall is less than 100KG); 2, the installation of the wall should be on the same horizontal plane, left or right to have a wall position and the door is almost wide, to be able to push the position;
